Auxilliary Components
Photo showing the Star Machine vacuum pump installed on the engine with its belts and tensioner.
Star Mini Vacuum Pump with its Idler Pulleys and Belt Tensioner.

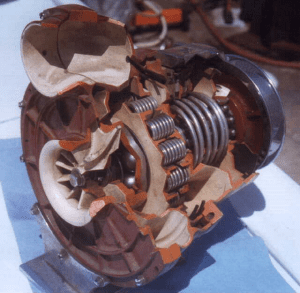

Photo showing a VS57 cut-away to reveal the impellor, ball drive assembly and other internal components.
McCulloch VS57 Supercharger Cut-Away – Impeller and Ball Drive Assembly is Identical to the Paxton SN60
Photo showing the PowerGen 93 Amp Alternator that looks like an orginal Auto-Lite generator.
PowerGen 93 Amp Alterator Designed to Fit Inside the Origianl Auto-Lite GJP7402-B Generator Case



Auxiliary Components

Application

Supplier

Part Number

Notes

Starter

Hi Torque

IMI-122-009

1.2 KW

Alternator

Power Master

282051

93 Amps

Vibration Damper

ATI



Super Damper, 7.074” OD

Distributor

Autolite

AT 4206 1K

Modified to dual-sync electronic

Oil Pump

Willys

733653

Modified for full-flow oil system

Water Pump

Willys

735828

Modified with high performance impellor

Vacuum Pump

Star Machine

STR.09.04.000

Fitted with 36 tooth pulley (PN STR.02.07.008) and low profile top plate (PN STR.18.03.003)

Radiator

Willys

927948

Fitted with top tank and bottom tank temperature sensors, and top tank pressure sensor.

Supercharger – Left

Paxton

SN60

High performance impellor installed
Uses ATF Type F Fluid

Supercharger – Right

Paxton

SN60

High performance impellor installed
Uses ATF Type F Fluid
