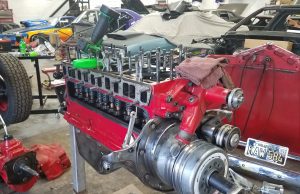

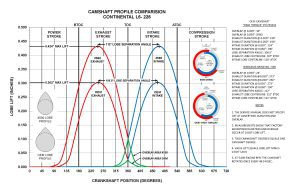

Cam Specifications |
||||
|
Modified Cam (509 Grind) |
OEM Cam |
|||
|
Intake |
Exhaust |
Intake |
Exhaust |
|
|
Opens |
13o BTDC |
57o BBDC |
8° ATDC |
19° BBDC |
|
Closes |
57o ABDC |
13o ATDC |
18° ABDC |
9° BTDC |
|
Duration @ 0.020” |
273o |
273o |
224° |
230° |
|
Duration @ 0.050” |
249o |
249o |
190° |
190° |
|
Overlap @ 0.050” |
26° |
Zero |
||
|
Lobe Centerline Angle |
112° |
108.5° |
||
|
Lobe Taper (in) |
Flat |
Flat |
||
|
Lobe Lift (in) |
0.424 |
0.302 |
||
|
Base Circle Diameter (in) |
0.875 |
1.000 |
||
|
Valve Specifications |
||||
|
|
Modified |
Original |
||
|
|
Intake |
Exhaust |
Intake |
Exhaust |
|
Head Diameter (in) |
1.650 |
1.500” |
1.500 |
1.328” |
|
Stem Diameter (in) |
5/16 |
5/16 |
5/16 |
5/16 |
|
Valve Lift (in) |
0.410 |
0.410 |
0.286” |
0.288” |
|
Curtain Area (in2) |
2.18 |
1.97 |
1.34 |
1.18 |
|
Lash (in) |
0.014 |
0.014 |
0.016 |
0.014 |
|
Valve Spring Specifications |
||||
|
|
Modified |
Original |
||
|
|
Intake |
Exhaust |
Intake |
Exhaust |
|
Spring Shape |
Beehive |
Beehive |
Straight |
Straight |
|
Number of Coils |
6 |
6 |
7 |
7 |
|
Top Coil Diameter (in) |
0.950 |
0.950 |
1.145 |
1.145 |
|
Bottom Coil Diameter (in) |
1.175 |
1.175 |
1.145 |
1.145 |
|
Wire Diameter (in) |
0.160 |
0.160 |
0.160 |
0.160 |
|
Free Length (in) |
2.010 |
2.010 |
1.969 |
1.969 |
|
Bind Height (in) |
0.95 |
0.95 |
1.180 |
1.180 |
|
Closed Spring Pressure (lb) |
131 lb @ 1.531” |
139 lb @ 1.501” |
51 lb @ 1.672” |
51 lb @ 1.672” |
|
Open Spring Pressure (lb) |
238 lb @ 1.121” |
246 lb @ 1.091” |
107 lb @ 1.312” |
107 lb @ 1.312” |
|
Spring Rate (lb/in) |
260 |
260 |
155 |
155 |
|
Lifter Specifications |
||||
|
|
Modified |
Original |
||
|
|
Intake |
Exhaust |
Intake |
Exhaust |
|
Head Diameter (in) |
1.230 |
1.230 |
1.000 |
1.000 |
|
Head Diameter Swept by Lobe (in) |
1.128 |
1.128 |
|
|
|
Body Diameter (in) |
11/16 |
11/16 |
3/4 |
3/4 |
|
Overall Length (in) |
2.57 |
2.57 |
1.89 |
1.89 |
|
Crown Radius (in) |
80 |
80 |
Flat |
Flat |
