TORQUE & MANEUVERABILITY

Experience unparalleled trail control with a 94:1† crawl ratio when the Borg Warner T98-A1Z transmission’s 6.39:1 low gear, coupled to the Spicer Model 18’s 3.6:1 low-range gear turns through the Dana 44’s 4.10:1 ratio limited slip differential.

The 104.5” wheelbase and 8.5” ground clearance, with 50° approach, 35° departure and 32° breakover angles, means it can easily maneuver around tight spots and over rocks, logs, or other obstacles.  The 20° ramp travel index of 350 will keep all four wheels on the ground in most off-road conditions.

†115:1 in reverse gear



Off Road Photo 680x340
Spicer Model 18 Transfer Case Scaled
Full Floating Axle Scaled
Power Lok Installed E1593729738555
Warn OD With Bowl Gear
Koenig Model 40 PTO Scaled
20200623 140824 4
DSC8416
Time Tested Tire & Wheel Combination
From Top To Bottom
previous arrow
next arrow

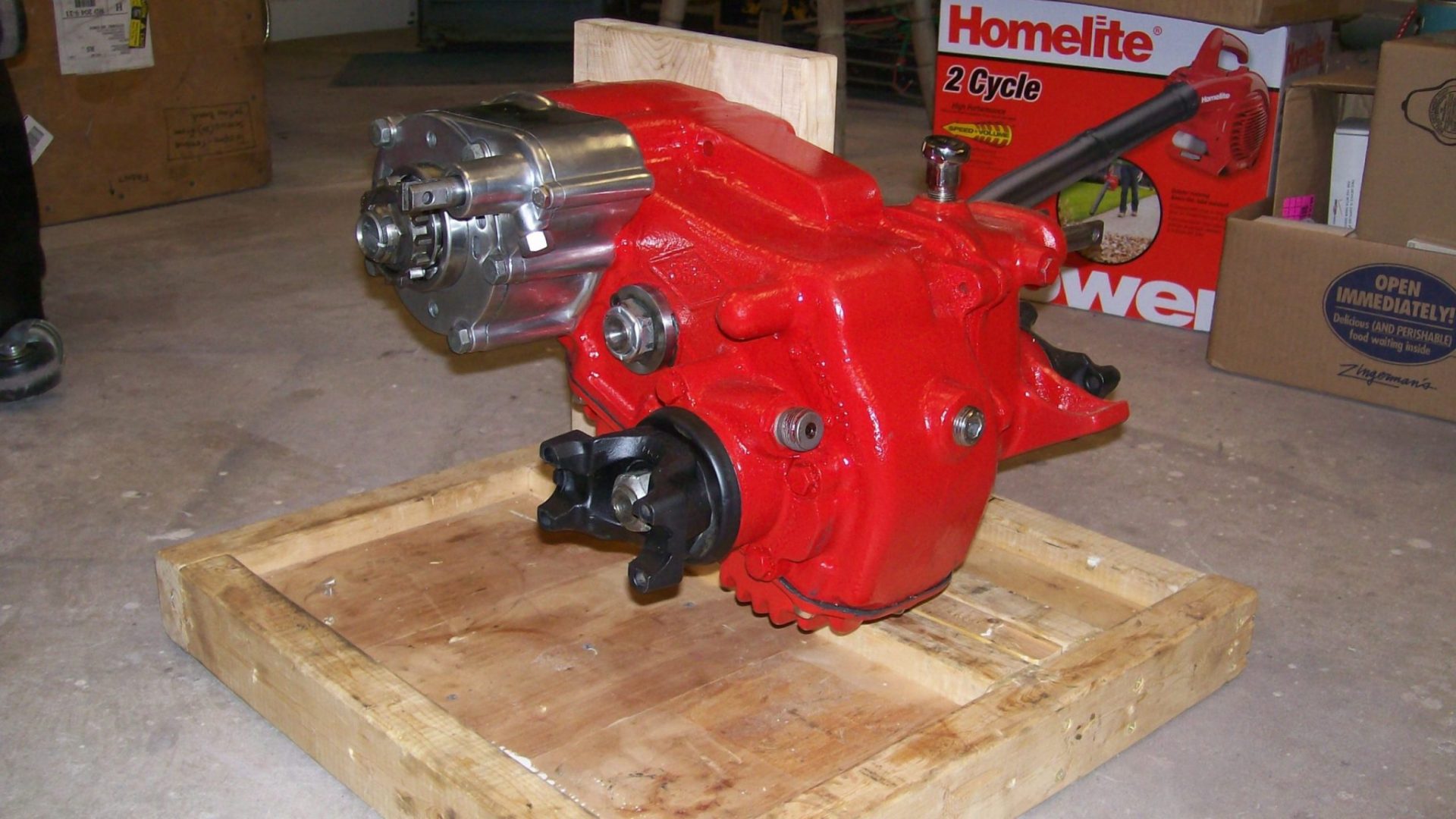

Model 18 Transfer Case

The Spicer Model 18 transfer case stuffed with a RockEater 3.6:1 gear set meets any off-road challenge. Tapered roller bearings provide quite operation at all speeds.

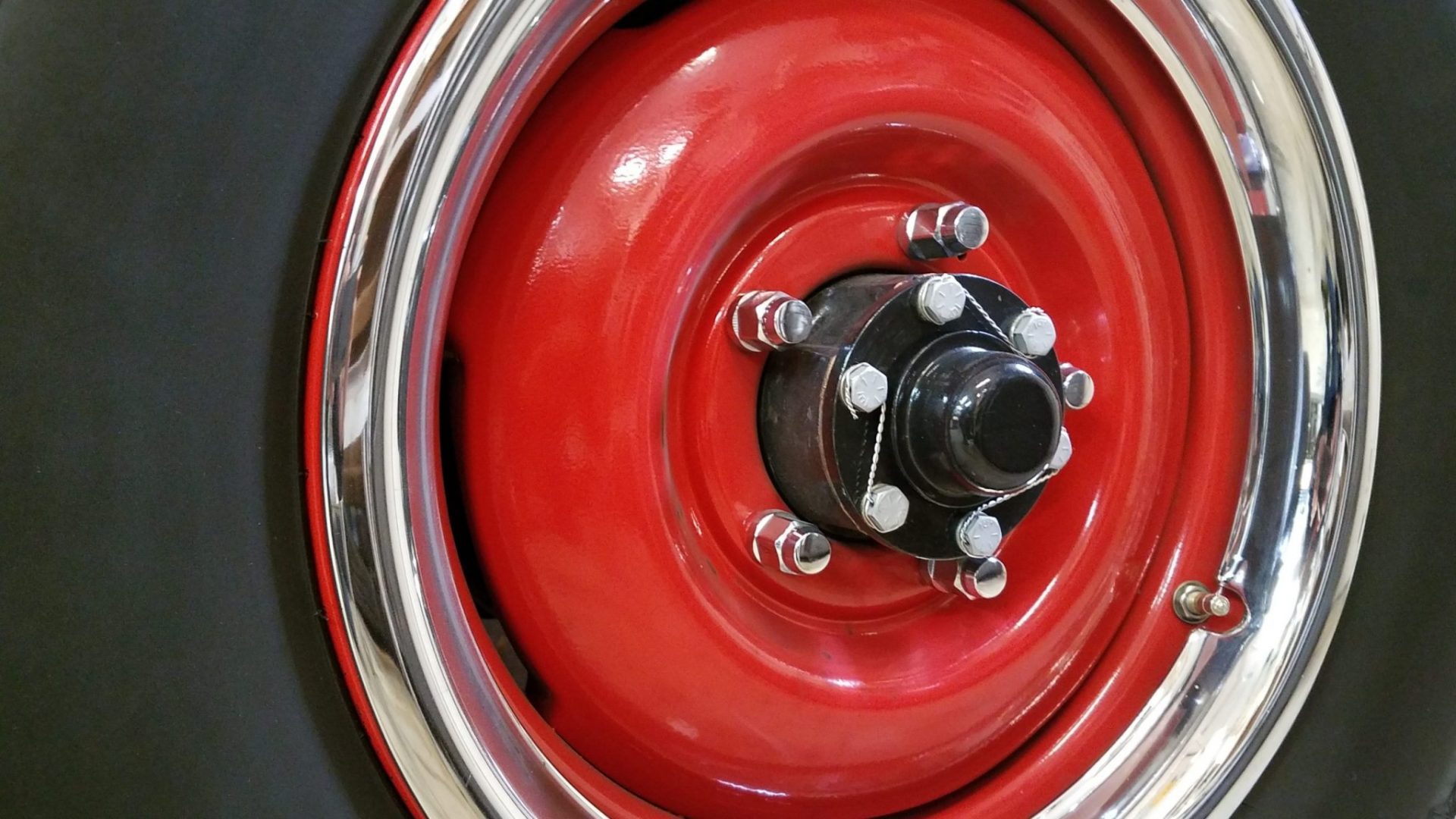

Full Floating Axles

The full-floating rear axle increases load capacity. A broken axle no longer results in losing a wheel and tire assembly with disastrous consequences.

Limited Slip Differentials

Front and rear PowerLok limited slip differentials direct power to the wheel with the most traction for greater control.

All-Range Overdrive

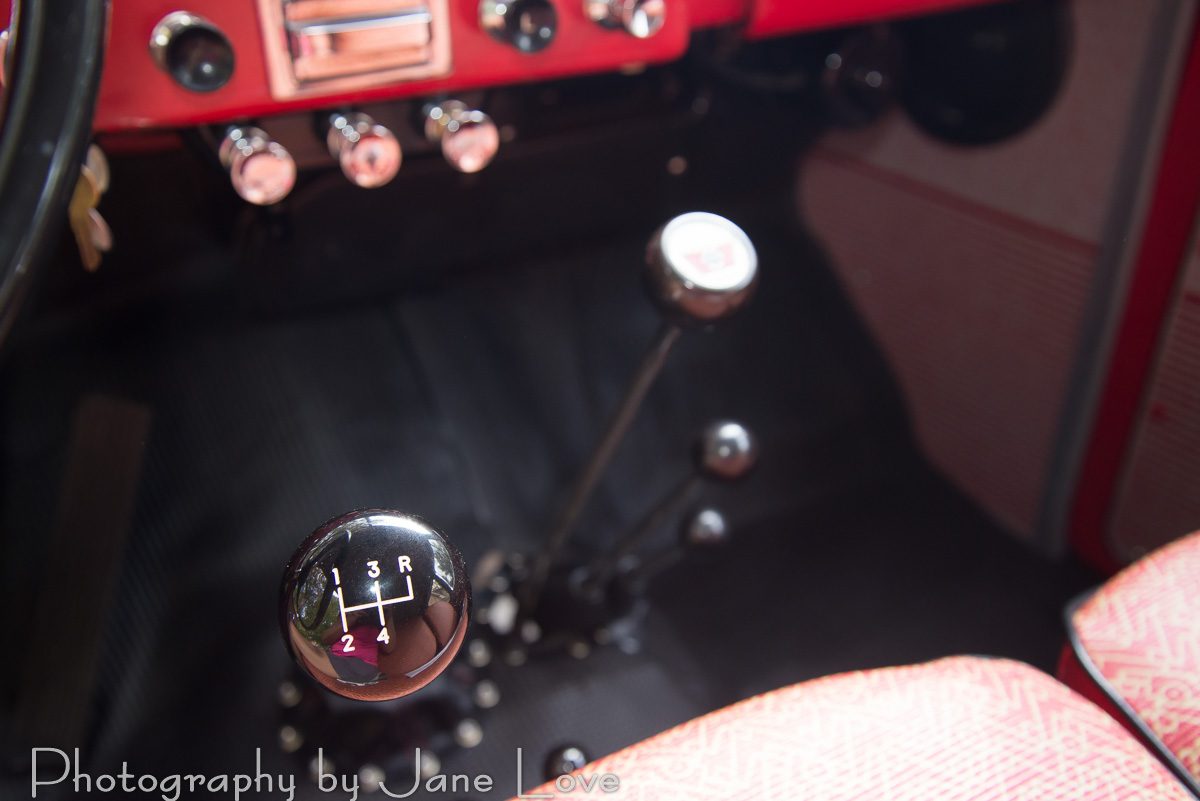

A Warn All-Range overdrive, coupled to the Borg Warner T98A1 4-speed transmission, provides off-road flexibility with 16 forward and 4 reverse gears from which to choose.

Power Take Off

A Koenig Model 40 twin-stick PTO provides options to power front and rear mounted auxiliary equipment such as a winch.

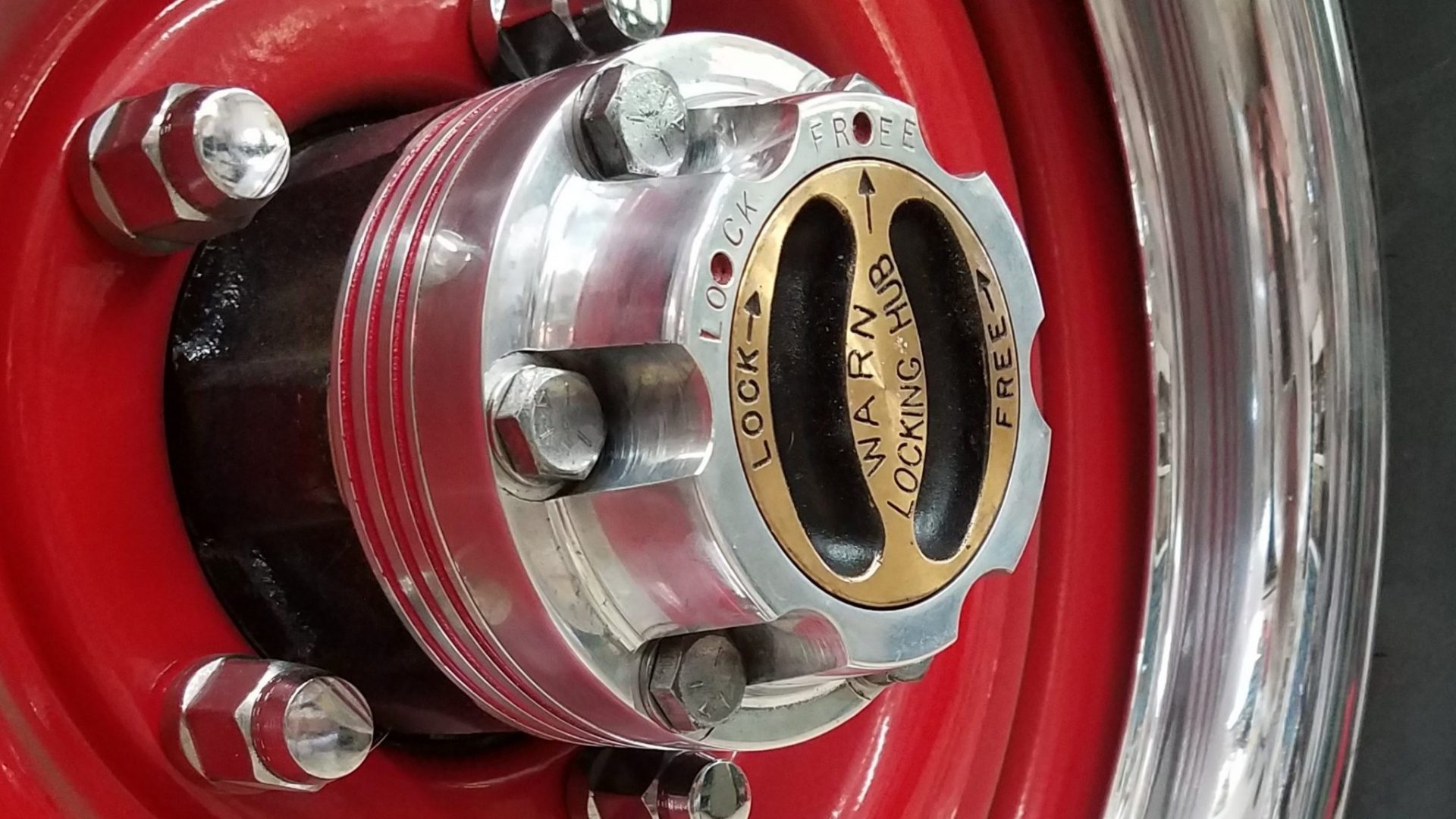

Locking Hubs

Warn WL-2 locking hubs up front provide the option to release the front axles for highway driving but are returned to 4WD with a quick turn of the dial.
