ENGINE: WILLYS SUPER HURRICANE L6-226

• Displacement: 261.1 cu in
• Bore: 3.391 in
• Stroke: 4.800 in
• Static Compression Ratio: 6.2:1
• Maximum RPM: 5,500
• Estimated BHP: 300 @ 5,200 RPM
• Estimated Torque: 270 LB-FT @ 3,600 RPM

INDUCTION SYSTEM: SUPERCHARGED WITH WATER-METHANOL INJECTION

• Supercharger: Two Paxton SN60s
• Maximum Boost: 9.0 psig
• Throttle Body: Two Barrel, 58 mm Progressive
• Flow Area: 8.2 sq in
• Water Methanol Injector: Two 600 cc/min

OVERDRIVE: WARN ALL-RANGE

• Ratio: 0.75:1
• Operational in 2WD & 4WD

TRANSFER CASE: SPICER MODEL 18 WITH ROCK EATER GEARS

• High Range Ratio: 1:1
• Low Range Ratio: 3.6:1

AXLES

• Front: Full Floating Dana Model 25 With 4.10:1 Ratio Limited Slip Differential
• Rear: Full Floating Dana Model 44 With 4.10:1 Ratio Limited Slip Differential

TRANSMISSION: BORG WARNER T98A1-Z

• First Gear Ratio: 6.39:1
• Second Gear Ratio: 3.09:1
• Third Gear Ratio: 1.69:1
• Forth Gear Ratio: 1:1
• Reverse Gear Ration: 7.82:1

WHEELS & TIRES

• 16-Inch x 6.5-Inch (widened) Kelsey-Hayes Steel Wheels with SS Beauty Rings
• 245/75R16 All-Terrain Tires with smoothed sidewalls

BRAKES: BENDIX SELF ENERGIZING

• Front: 11” X 2” Self-Adjusting Drum
• Rear: 11” X 2” Self-Adjusting Drum

SUSPENSION: SEMI-ELLIPTICAL LEAF SPRING

• Front Springs
• Length: 36-1/4 in
• Width: 1-3/4 in
• Number of Leaves: 8
• Rear SpringS
• Length: 50-1/4 in
• Width: 1-3/4 in
• Number of Leaves: 8
• Shock Absorbers :Gas Filled Hydraulic

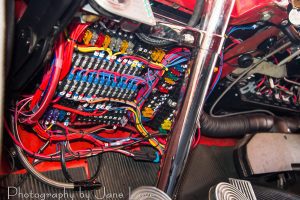

ELECTRICAL

• Alternator: 93 amp
• Battery: 760 Cold Cranking Amp (CCA) AGM
