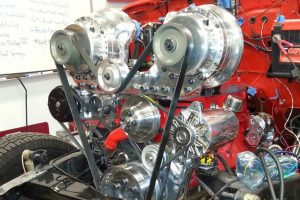

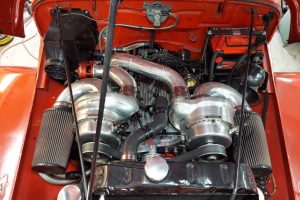

Modified Engine Specifications 1960 Willys Super Hurricane L6-226 |
||
|
Number of Cylinders |
6 |
|
|
Firing Order |
1-5-3-6-2-4 |
|
|
Bore |
3.391 in |
Was 3.313 |
|
Stroke |
4.800 in |
Was 4.375 |
|
Displacement |
261.1 in3 |
Was 226.2 |
|
Block Deck Height |
11.200 in |
Same |
|
Piston Deck Height |
-0.010 in |
Was 0.015 |
|
Bore to Stroke Ratio |
0.71 |
Was 0.76 |
|
Rod Length |
7.000 in |
Same |
|
Rod to Stroke Ratio |
1.46 |
Was 1.61 |
|
Piston Compression Height |
1.800 in |
Was 2.002 |
|
Crankshaft |
Forged, SAE 1035, Welded stroker |
|
|
Number of Main Bearings |
4 with modified main bearing caps |
|
|
Fuel (Octane) |
93; gas only |
|
|
Cylinder Head |
Kuran Engineering custom aluminum |
|
|
Compression Ratio |
7.5:1 |
Was 7.3:1 |
|
Combustion Chamber Volume |
100 cc |
Was 83 |
|
RPM – Design Maximum |
5,500 |
Was 4,000 |
|
Boost – Maximum |
12 psi (Twin Paxton SN60’s) |
|
|
Design Maximum Piston Speed |
4,000 fpm |
|
|
RPM @ Design Max Piston Speed |
5,140 |
|
|
Intake Port Dimensions |
1.5 in x 1.1 in |
|
|
Intake Port Area |
1.60 in2 |
|
|
Intake Port Volume |
80 cc |
|
|
Intake Runner Length |
≈ 6 in |
|
|
Intake Runner Volume |
Not measured |
|
|
Intake Plenum Dimensions |
24” L x 2,9” DIA (Interior ) |
|
|
Intake Plenum Volume |
2,780 cc (170 in3) |
|
|
Fuel Injector |
36 lb/hr (Accel PN150136) |
|
|
Thermostat Rating |
180°F w/0.028 in2 bypass area (Robert Shaw PN 301) |
|
|
Distributor |
Autolite PN: IAT 4206 1K modified to accept hall effect camshaft and crankshaft position sensors |
|
|
Ignition Type |
Electronic |
|
|
Ignition Coils (6 ea.) |
Coil Near Plug (Holley Part No. 556-112) 44,000 Volts |
|
|
Spark Plugs |
NGK (Part No. R5671A-9) Gap: 0.028” |
|
|
Fuel Pressure Regulator |
Accel PN 74567 |
|
|
Fuel Rail Pressure |
43 psi @ 1 ATM – Referenced to manifold pressure |
|
|
Fuel Pump |
Tanks Inc PA-4 Kit with Walbro GSL392 (255 LPH) |
|
|
Estimated BSFC |
0.5 – 0.7 lb/hr/hp |
|
|
Engine Control Module |
Holley Dominator (Holley Part No: 554-114) |
|
|
Idle Air Control |
Accel PN 74779 |
|
|
Knock Sensor |
Bosch PN KS4-R |
|
|
Knock Controller |
J & S Electronics Safeguard Interceptor |
|
